Historic Sites of Manitoba: Winnipeg Hydro Substation No. 1 (48 King Street, Winnipeg)

This Winnipeg site was acquired by the Winnipeg Hydro-Electric System (later known as City Hydro, now Manitoba Hydro) from Cyrus McBean in mid-summer 1910 for $43,080. Sub-Station No. 1 was designed by the engineering firm of Smith Kerry & Chace and built between 1910 and 1911. The tender for the structure’s steel was awarded to the Manitoba Bridge and Iron Works for $12,413. Power was brought here from the Pointe du Bois Generating Station, via the Rover Avenue Electric Terminal, and stepped down from 12,000 volts to a voltage serviceable for local distribution lines. The building backed on the City Hydro Showroom on Princess Avenue.

To meet electricity demand in downtown Winnipeg, upgrades were made to the substation in the 1950s, 1960s, and 1970s. The original station had been built as a 66-4kV station with the subsequent addition of 66-12kV banks at later stages. The 12kV system was added to primarily serve the areas south of Portage Avenue towards Main Street. In the 1960s, the 125/216V secondary network was established to aid in the conversion of the downtown area from an overhead to and an underground system.

By 2017, the building was no longer suitable to meet the future demand for electricity so a new facility was constructed nearby on Adelaid Street. The original substation was decommissioned in the Fall of 2017.

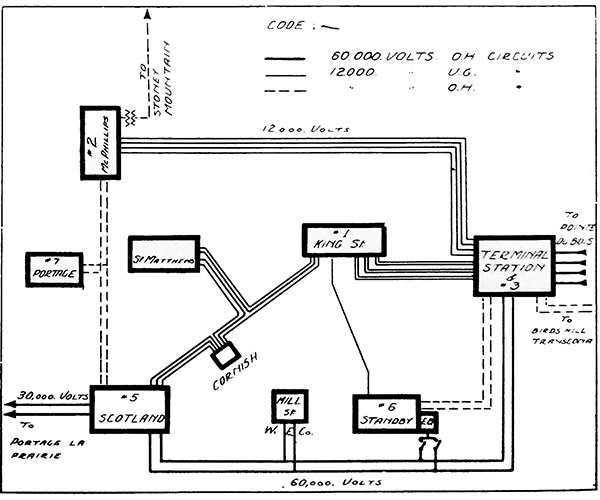

Map of electrical substations in Winnipeg with Substation No. 1 in the centre

Map of electrical substations in Winnipeg with Substation No. 1 in the centre (1926)
Source: The Dotted Lines (April 1926) [Manitoba Legislative Library]

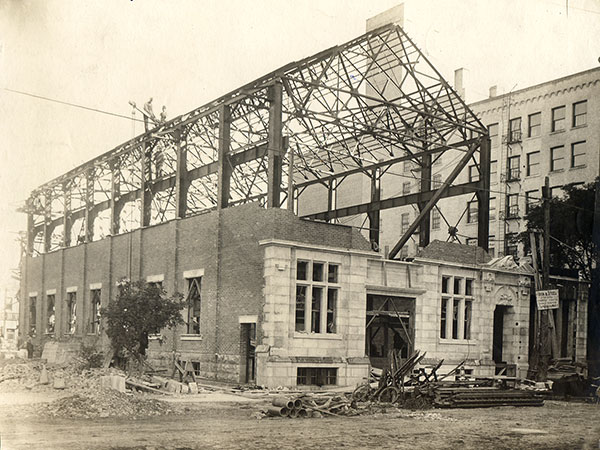

Construction of Winnipeg Hydro Substation No. 1

Construction of Winnipeg Hydro Substation No. 1 (July 1911)
Source: Manitoba Hydro

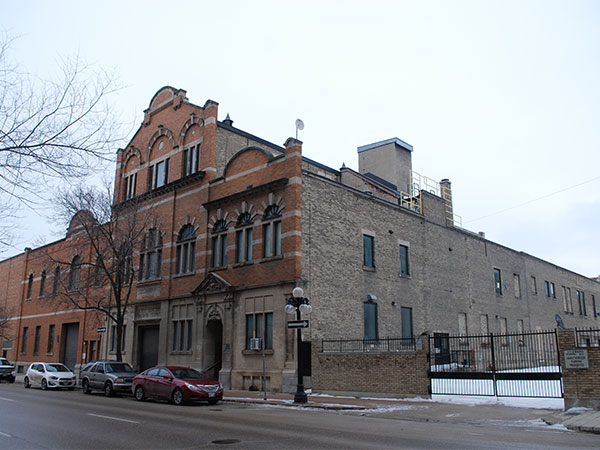

Winnipeg Hydro Substation No. 1

Winnipeg Hydro Substation No. 1 (January 2017)
Source: Nathan Kramer

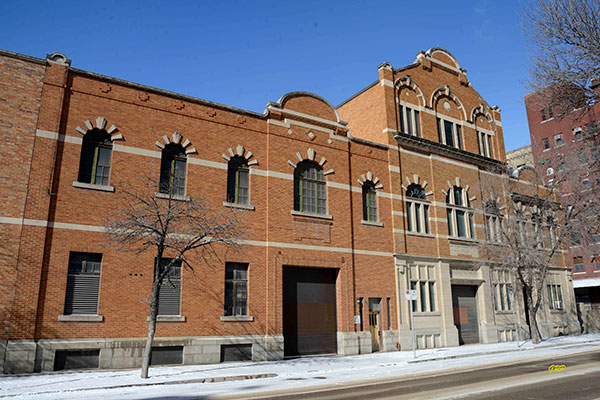

Winnipeg Hydro Substation No. 1

Winnipeg Hydro Substation No. 1 (February 2021)
Source: George Penner

Site Coordinates (lat/long): N49.89686, W97.14234
denoted by symbol on the map above
