Located on Rover Avenue between Rachel Street and McFarlane Street North, this building was constructed as part of the Winnipeg Hydro Electric System (later known as City Hydro, now Manitoba Hydro) system that brought electricity into Winnipeg from the Pointe du Bois Generating Station. Tenders were called in December 1909 and the Consulting Board of Engineers selected the J. McDiarmid Company offer over the lowest bid of the Claydon Construction Company.

A spur line to the site was built from the Canadian Pacific Railway main line down Rachel Street. Site excavation was completed and construction of a two-storey brick and stone building, measuring 60 feet by 100 feet, took place during the first half of 1910, then equipment was installed. The finished structure included a full basement. Bricks were provided by the Winnipeg Brick Company.

The building underwent operational testing in early October 1911. Power brought by transmission lines from Pointe du Bois was stepped-down here from 60,000 volts to 12,000 volts before being redirected around the city. Initially, three sub-stations were planned: the downtown Sub-Station No. 1 on King Street, Sub-Station No. 2 on McPhillips Street, and Sub-Station No. 3 on May Street, where the voltage was further reduced for transmission to local service lines. In 1919, Sub-Station No. 5 was built in the southern part of the city.

The original structure has been enlarged several times, starting in 1913-1914 with a $35,000 extension built by the Fort Garry Construction Company. In 1924, the adjacent properties were acquired from the Winnipeg Electric Railway Company. The street address for the facility changed from 30 Rover Avenue to 199 Annabella (formerly Rachel) Street.

A concrete wall was built around the facility following the 1950 flood. A small plaque on the wall indicates the maximum height of floodwater.

Photos & Coordinates

Map of electrical substations in Winnipeg with the Terminal Station at right

Map of electrical substations in Winnipeg with the Terminal Station at right (1926)
Source: The Dotted Lines (April 1926) [Manitoba Legislative Library]

Preparation of the Rover Terminal site

Preparation of the Rover Terminal site (July 1910)
Source: Manitoba Hydro

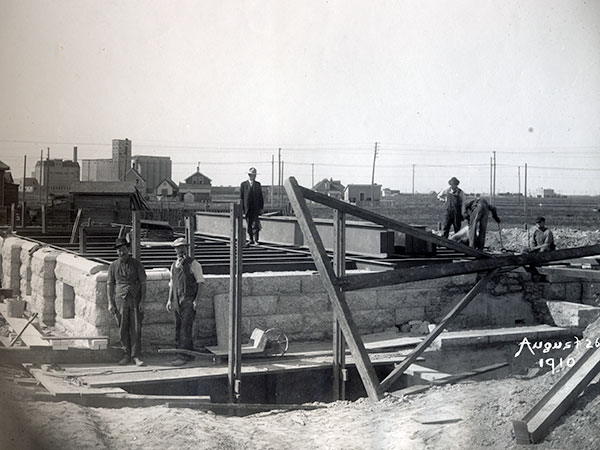

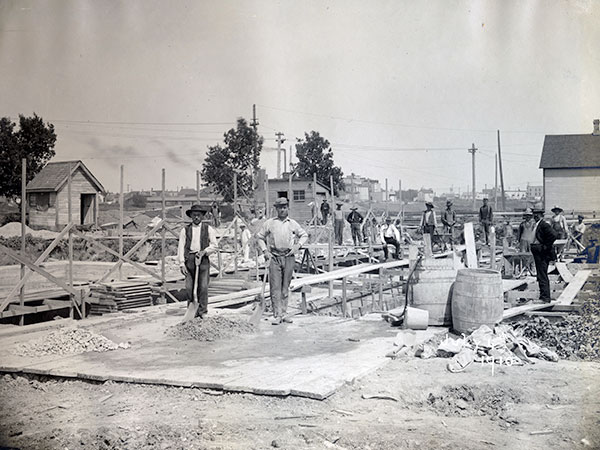

Construction of the Rover Terminal building

Construction of the Rover Terminal building (August 1910)
Source: Manitoba Hydro

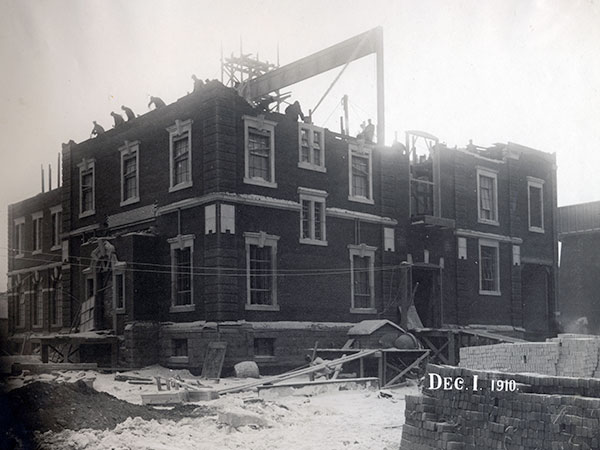

Construction of the Rover Terminal building

Construction of the Rover Terminal building (December 1910)
Source: Manitoba Hydro

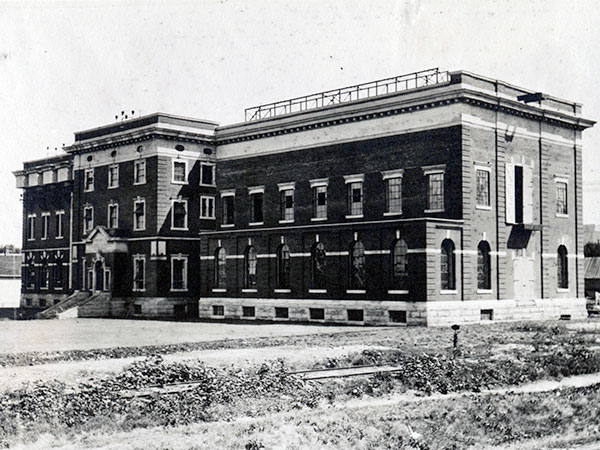

The completed Rover Terminal building

The completed Rover Terminal building (no date)
Source: Manitoba Hydro

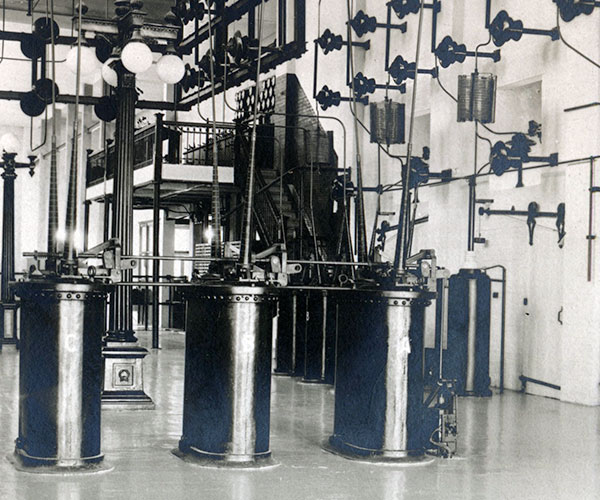

Interior of the Rover Terminal building

Interior of the Rover Terminal building (no date)
Source: Manitoba Hydro

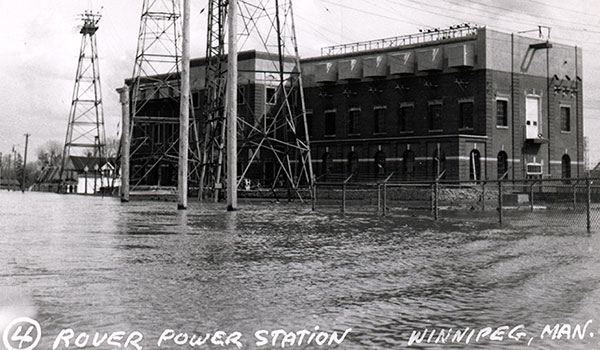

Aerial view of the Rover Terminal building during the 1950 Winnipeg flood

Rover Terminal building during the 1950 Winnipeg flood (May 1950)
Source: Gordon Goldsborough, 2020-0120

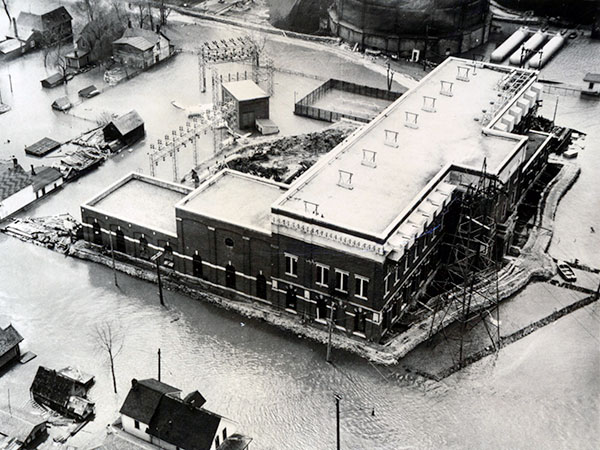

Aerial view of the Rover Terminal building during the 1950 Winnipeg flood

Aerial view of the Rover Terminal building during the 1950 Winnipeg flood (May 1950)
Source: Manitoba Hydro

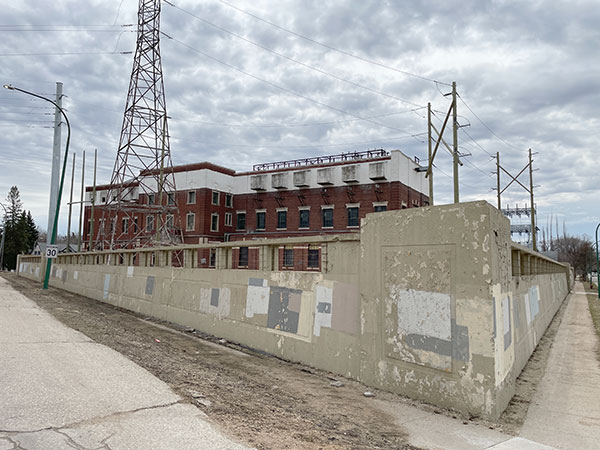

Perimeter wall built after the 1950 flood

Perimeter wall built after the 1950 flood (April 2024)
Source: Gordon Goldsborough

Plaque on inside of perimeter wall indicating height of 1950 floodwaters

Plaque on inside of perimeter wall indicating height of 1950 floodwaters (April 2024)
Source: Gordon Goldsborough

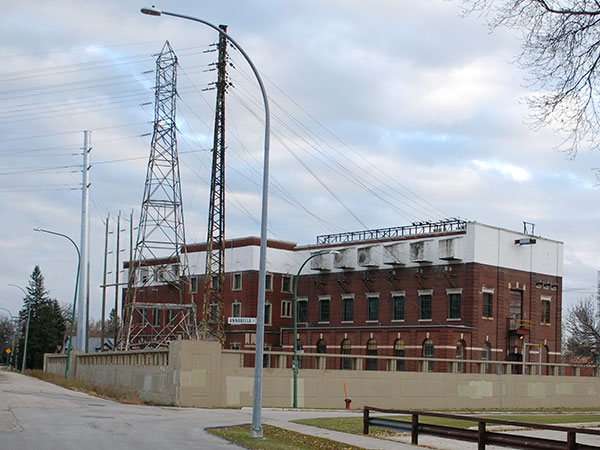

Rover Avenue Electric Terminal

Rover Avenue Electric Terminal (August 2016)
Source: Nathan Kramer

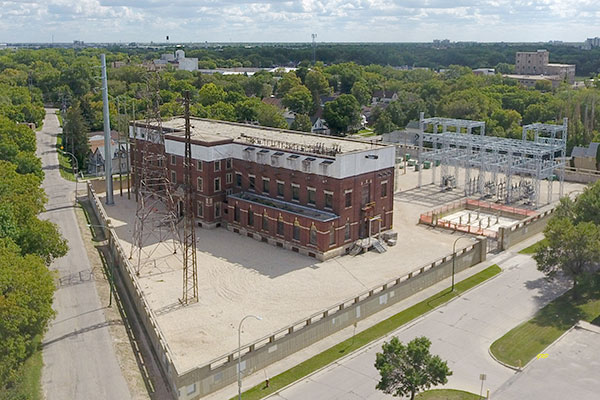

Aerial view of Rover Avenue Electric Terminal

Aerial view of Rover Avenue Electric Terminal (August 2019)
Source: George Penner

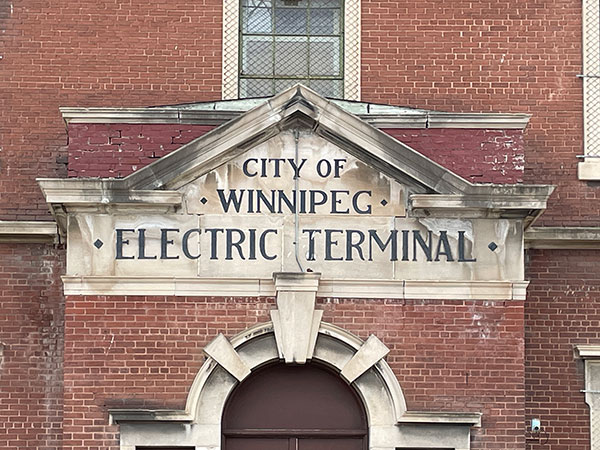

Entrance to the Rover Avenue Electric Terminal

Entrance to the Rover Avenue Electric Terminal (April 2024)
Source: Gordon Goldsborough

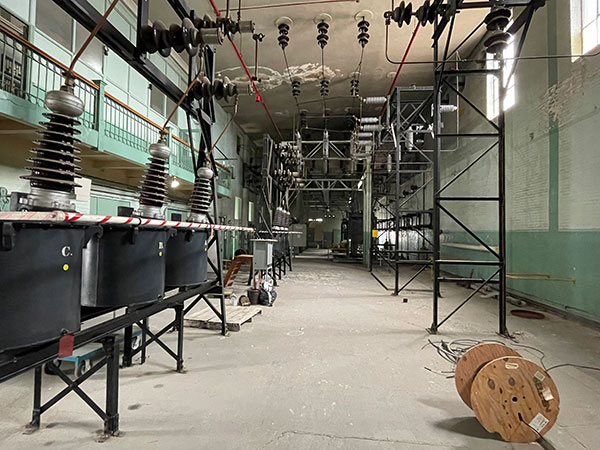

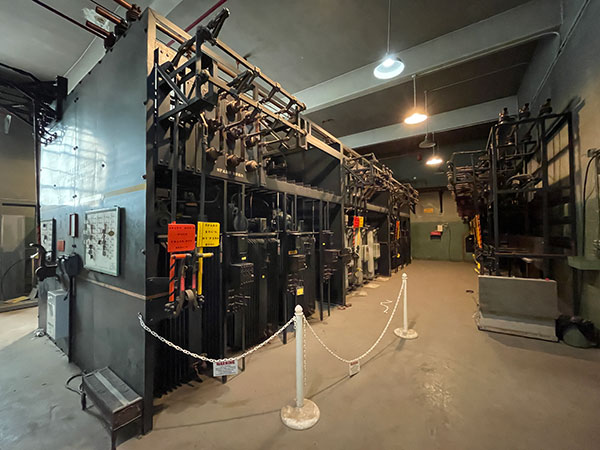

Equipment inside the Rover Avenue Electric Terminal

Equipment inside the Rover Avenue Electric Terminal (April 2024)
Source: Gordon Goldsborough

Equipment inside the Rover Avenue Electric Terminal

Equipment inside the Rover Avenue Electric Terminal (April 2024)
Source: Gordon Goldsborough

Site Location (lat/long): N49.90654, W97.12021
denoted by symbol on the map above
