In the spring of 1962, at the height of the Cold War, the Canadian government began building a nation-wide Nuclear Detonation and Fallout Reporting System (NDFRS) to measure the pattern and intensity of radioactive fallout in the event of a nuclear explosion. A network of 2,000 small Fallout Reporting Posts, 200 of them distributed throughout Manitoba, would be constructed to take local fallout measurements. In Manitoba, results from each Fallout Reporting Post would be transmitted to Filter Centres located at the Pine Falls Armoury and Brandon Armoury where teams of women in the Canadian Women’s Army Corps would summarize and pass on the data to one of three Nuclear Detonation Reporting Posts (NUDET), located at RCAF Portage la Prairie and RCAF Gimli, and in the Great Falls Generating System. NUDETs would use the data to determine the location of the explosion and its fallout yield, and transmit this information to the Regional Emergency Government Headquarters (REGHQ) at Camp Shilo.
At least 100 of the 200 Fallout Reporting Posts in the Manitoba complement were constructed by mid-1962. Some were situated in railway stations, buildings belonging to federal and provincial offices, and RCMP detachment offices. Others in more remote locations were built underground to protect the operators from radiation. This post, designated as KE4, consisted of a 10-foot vertical metal tunnel that led down to a horizontal corrugated-metal cylinder, about 14 feet long and eight feet in diameter, that housed the radiation monitoring equipment, storage shelves for food, water, and other supplies, and beds for two people. The post, located on PR308 near a former forestry office in the Northwest Angle Provincial Forest, near the entrance to Moose Lake Provincial Park, was locked and welded shut at the time of an August 2020 site visit.
This Fallout Reporting Post was removed in November 2023 and moved to the Miami Railway Station Museum.
Entrance to Fallout Reporting Post KE4 (August 2020)
Source: Gordon Goldsborough

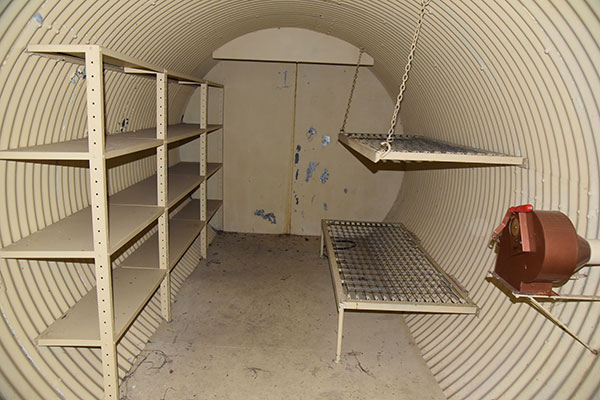

Interior of Fallout Reporting Post KE4 (May 2021)
Source: Gordon Goldsborough

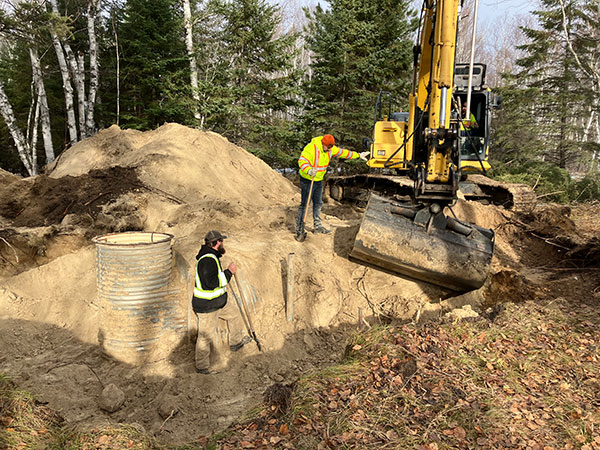

Fallout Reporting Post KE4 being uncovered (November 2023)
Source: Gilles Messier

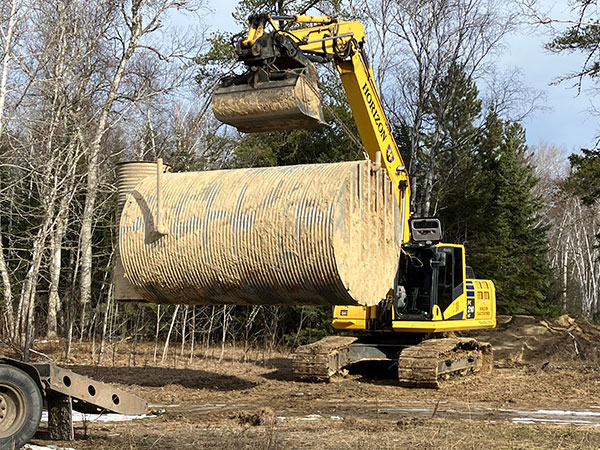

Fallout Reporting Post KE4 being loaded onto a trailer (November 2023)
Source: Gilles Messier

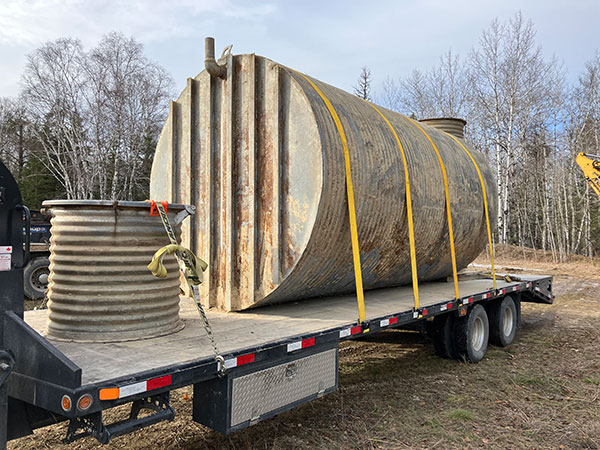

Fallout Reporting Post KE4 ready for transport to Miami (November 2023)
Source: Gilles Messier
Fallout Reporting Post KE4 at the Miami Railway Station Museum (March 2024)
Source: Gordon Goldsborough
Fallout Reporting Post KE4 at the Miami Railway Station Museum (March 2024)
Source: Gordon GoldsboroughSite Coordinates (lat/long): N49.20370, W95.34926
denoted by symbol on the map above
